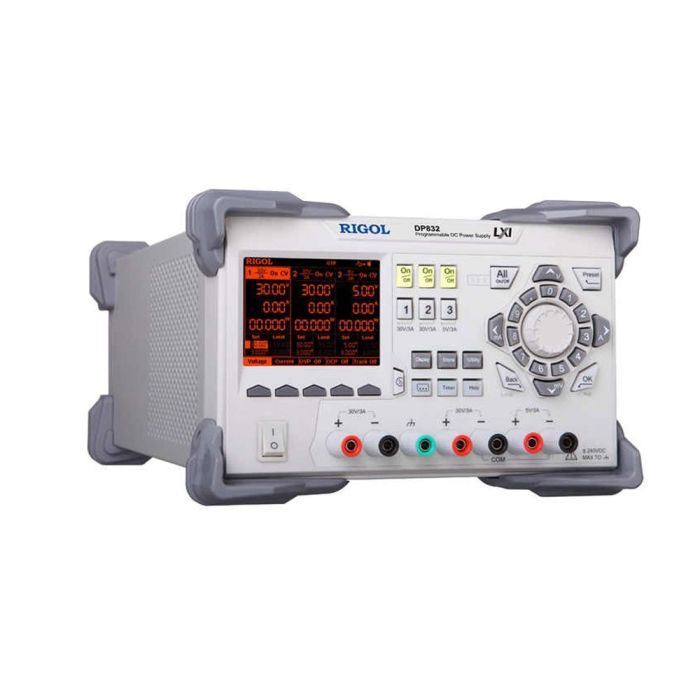

Rigol DP832 Triple Output, 195 Watt Power Supply 30V/3A & 5V/3A

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with up to 3 outputs and up to 200 Watts in total. With some isolated channels users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features means there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.

Next generation triple output DC power supply with USB host and device, LAN and RS232 connectivity. Innovative graphical interface.

Channels 3
Voltage/Current
CH1: 0 to 30V/0 to 3A
CH2: 0 to 30V/0 to 3A
CH3: 0 to 5V/0 to 3A
OVP/OCP
CH1: 10mV~33V/1mA~3.3A
CH2: 10mV~33V/1mA~3.3A
CH3: 10mV~5.5V/1mA~3.3A

Load Regulation Rate ±(Output Percentage + Offset)
Voltage <0.01%+2mV
Current <0.01%+250uA
Linear Regulation Rate ±(Output Percentage + Offset)
Voltage <0.01%+2mV
Current <0.01%+250uA
Ripples and Noise (20Hz to 20MHz)
Normal Mode Voltage <350μVrms/2mVpp
Normal Mode Current Common Mode Current <1.5μArms

Channel Isolation: CH1 || CH2,CH3
Standard OVP/OCP/OTP protection functions
Standard Timing function
In-Built V,A,W measurements and waveform display
Support Output Delay, Analysis, Monitor, Preset functions
Independent control for each channel
Display 3.5 Inch TFT
Connectivity USB Host & Device, LAN, RS232,Digital IO,Support USB-GPIB (Opt.)
