Diamond Systems

Diamond Systems delivers rugged embedded computing, high-performance networking, and Edge AI solutions engineered for mission-critical applications in the world’s most demanding environments.

From proven standard products to semi-custom and fully customized solutions, Diamond Systems help customers accelerate development, reduce technical risk, and bring reliable products to market faster.

Diamond History

Diamond Systems products are deployed across:

Defense, Aerospace, Autonomous Maritime, Robotics, Medical Imaging, Public Safety and Spectrum-Monitoring Applications.

Defense/Aerospace

UAS Mission Processing, Satellite Comms, Military Ground Vehicles

Autonomous Systems

Drone Boats, Uncrewed Vessel Networks, Drones and Robots

Edge AI / Vision

Wildfire Suppression UAVs, Medical Imaging, Multi-Camera AI

Networking

In-flight Entertainment, Aircraft Video, Rugged Managed Ethernet

WHY CUSTOMERS CAN TRUST DIAMOND SYSTEMS
Designed for Rugged Environments	Products are designed for harsh environments, including wide temperature, shock and vibration requirements.
Proven Customization Model	SPV and full-custom capabilities allow customers to adapt proven designs instead of starting from zero.
System-Level Capability	Diamond supports boards, rugged computers, Ethernet switches, power, I/O, enclosures, cables and integration.
Lifecycle Support	Lifecycle management helps customers address component obsolescence and long-life program requirements.
Engineering Breadth	Capabilities span x86, NVIDIA Jetson, Ethernet switching, FPGA, power, I/O and rugged mechanical design.
Application Experience	Diamond products are used in military, transportation, robotics, unmanned systems, medical, scientific and industrial applications.

2022 Catalog

Product Guide

products

Diamond Systems delivers military-grade rugged embedded computing systems and Ethernet switches with attractive pricing and delivery times. Common features and benefits of these systems include:

Solid-body aluminum CNC construction
MIL-DTL-38999 connectors
IP67 environmental protection
-40 to +85 deg. C or similar operating temperature
MIL-STD-461, -704, and -1275 compliant power
Impressive I/O features
High degree of configurability and customizability
Short leadtimes and competitive prices

Sabre Rugged System

Primary rugged x86 custom mission computer

Product	Type	Description
GEODE-JSP	Mission computer	Quick-ship rugged systems based on COM Express, PCIe/104, and Minicards for easy I/O expansion and performance scalability
SabreCom-JSP	Rugged x86 computer	Rugged systems featuring COM Express CPUs for performance scalability and extreme I/O expansion capability using PCIe/104 & minicard I/O modules
SabreCom-JRS	Rugged x86 Computer	Rugged system featuring scalable CPU performance and easy I/O expansion with preconfigured options
SabreCom-CE1	Integrated Computer + Ethernet Switch	Features removable mass storage, scalable CPU performance, I/O expansion, and front panel convenience features
SabreCom 300	Integrated Computer + Ethernet Switch	Core i7 / Xeon processor-based SBC, 7/15 port Gigabit Ethernet switch, and rugged MIL rated power supply in a single enclosure
SabreNet 12000	Ethernet Switch	Rugged compact Ethernet switch with 12 1Gbe copper ports and Layer 2+ / Layer 3 embedded software
SabreNet 24000	Ethernet Switch	Rugged switch with 24 1Gbps copper ports and 4 10Gbps copper / fiber ports
Raptor-Epsilon	Ethernet switch	Rugged, cost-effective, 8-port Gigabit Ethernet switch with MIL-STD-461 compliance and embedded management software

Rugged computers and switches datasheet

Diamond Nvidia

Diamond Systems’ family of NVIDIA embedded solutions delivers cost-effective, rugged and I/O-rich AI-at-the-edge computing solutions based on the latest Jetson modules.

The family includes carrier boards, integrated assemblies with Jetson module installed and programmed, as well as complete commercial- and rugged-grade systems.

A free downloadable Linux OS based on the latest JetPack release is available for all products.

Our NVIDIA solutions target a range of industrial and military applications, with a focus on harsh environments (such as vehicles and other outdoor applications) and I/O-intensive applications.

All products are tested for performance over the full rated operating temperature of the Select products are qualified for MIL-STD-202H and/or -810H compliance.

See the Nvidia Jetson module family details here

Product	Description	Typical Applications
Osbourne-ER	Rugged NVIDIA Jetson AGX Orin carrier solution	AI inference; sensor fusion; autonomous platforms
Osbourne	Carrier board and development platform for NVIDIA Jetson AGX Orin	Custom AI systems; development; vision
JetBox Osbourne	Industrial system solution for NVIDIA Jetson AGX Orin	AI development; robotics; machine vision
Jackson	Carrier board for NVIDIA Jetson Orin NX / Orin Nano	Edge AI development; machine vision; robotics
Jackson-ER	Rugged carrier for NVIDIA Jetson Orin NX / Orin Nano	Drones; robotics; portable AI; defense
Stevie	Carrier and Dev Kit for NVIDIA Jetson AGX Xavier	Commercial / industrial environments requiring low cost and compact size

JETBOX OSBOURNE

NVIDIA Jetson AGX Orin system solution with I/O and camera expansion

OSBOURNE

Carrier and Development Kit for NVIDIA Jetson AGX Orin

SabreNet Ethernet Switches feature both 1Gbe copper and 10Gbe copper/fiber (SFP) connectivity and Layer 3 routing software with IEEE1588 PTP option. The embedded switch software provides for configuration via a web-based graphical user interface as well as RS-232 port. The software can be upgraded to offer customer-specific branding and functionality.

Product	Description	Typical Applications
SabreNet-24000	Defense networking; vehicles; command systems	Defense networking; vehicles; command systems
SabreNet-12000	Rugged Layer 2/3 managed 12-port Gigabit Ethernet switch	Vehicles; avionics; industrial networking
Raptor-Epsilon	Rugged 8-port Gigabit Ethernet switch	Compact vehicle and industrial networks

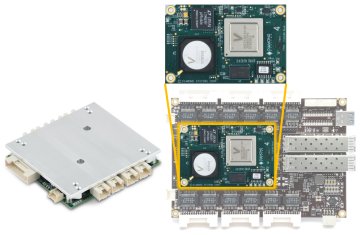

Ethernet Switch

EPSM-12G2F

26-Port Miniature Rugged Managed Ethernet Switch Module

EPS-8130

Managed 8-Port Gigabit Ethernet switch with embedded layer 2 software

Diamond Systems offers a range of single-board computers based on x86 technology designed specifically for the rigors of industrial and military applications. Our embedded SBCs offer the following features and benefits:

Rugged – Most boards feature wide temperature (-40 to +85ºC) operation and conduction cooling with bottom-mounted heat spreaders. Our newest products also feature thicker PCBs and latching I/O connectors to survive high shock and vibration environments.	COM-based designs – Our COM-based SBCs support quick upgrades and eliminate obsolescence by allowing the CPU module to be swapped out with a newer or higher-performance one when needed. Learn more here.

2-in-1 SBCs – Many SBCs include a full-feature data acquisition circuit with precision analog I/O and digital I/O. The analog I/O features autocalibration for higher accuracy. These circuits are supported by our Universal Driver programming library featuring time-saving example programs. Learn more here.	Rugged Systems – Our SBCs form the basis of our rugged SABRE computer systems, designed for use in the harshest environments including ground mobile applications. Learn more here.

GEMINI COM-Based SBC with WL8665UE CPU / COM Express Carrier

Zeta Processor Module

Ultra-Small SBC Using COM Express Type 10 CPU Modules

SATURNRugged Apollo Lake x5-E3940 SBC with Data Acquisition and PCIe/104 Expansion

SATURN combines a feature-rich Atom-class processor-based SBC with a professional-quality industrial analog and digital data acquisition subsystem and flexible I/O expansion in a single board designed for rugged applications.

Intel “Apollo Lake” x5-E3940 1.6GHz (burstable 1.8GHz) quad-core processor with 15-year lifecycle
4GB non-ECC or 8GB ECC RAM soldered down
Integrated professional-quality analog and digital data acquisition subsystem with software support
Bottom side heat spreader with integrated thermal pad provides efficient cooling and convenient mounting
Full -40 to +85C industrial operating temperature range
Thicker PCB and latching connectors increase resistance to shock and vibration
PCIe/104 OneBank expansion socket for industry-standard rugged I/O expansion
Minicard expansion socket for versatile low-cost I/O

From the very beginning Diamond has been devoted to offering a wide range of rugged, feature-packed, wide-temperature I/O expansion modules. Their modules are supported by a proprietary free and highly versatile Universal Driver software, which simplifies programming effort and enables full control of each boards features.

Rugged Analog I/O Modules

Diamond offers a wide selection of rugged, wide-temperature, PC/104-sized DC/DC power supplies offering options of up to 218W output power, multiple output voltages, and fixed and variable voltage inputs.
