Handywave Products

Handywave has been distributed in NZ by MasTec for many years.

Have a look at the latest HPS-200 Industrial DIN Rail Bluetooth module.

We use their products in house for products we develop that need fast and simple wireless connections.

They are very easy to setup and use.

Products Characteristics


Low cost
Small form factor
License free(2.4GHz ISM band)

Full duplex transparent RS-232 emulation
High data rates(115kbps default, 230/460Kbps optional)
Enhanced security(max 128bit data encryption)
Inherent noise immunity(frequency hopping spread spectrum)
Plug and play(no extra software needed)
Point-to-multipoint capability
User configurable(using AT commands on the PC)
User programmable(using on-line commands)
Low power consumption(fitted with handheld devices)
Service range expandable(using higher gain external antenna)

Specifications
Standard : Bluetooth v1.1 compatible
Radio Frequency : 2.402 ~ 2.480GHz
Bandwidth : 1Mbps
Output Power : max +20dBm(100mW)
Rx Sensitivity : -84dBm
Frequency Hopping : 1,600times/sec
Baud Rates : 1.2 ~ 115.2Kbps
Coverage : 100 ~ 1,000m(open sight)
Temperature Range : -20 ~ 75 C



Talk to a MasTec Sales Engineer

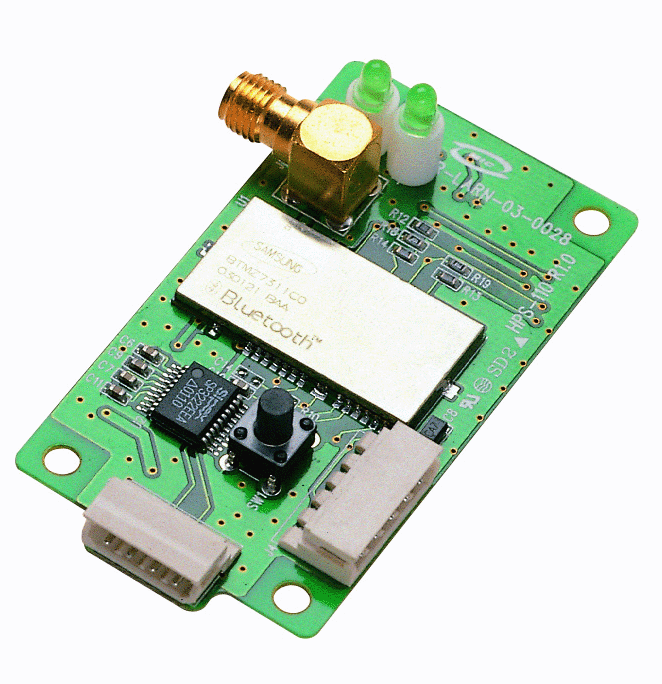

OEM Bluetooth RS-232 TTL
