Microstrain Products Their sensors have won numerous awards and they pride themselves on being both innovative and responsive to their customer's unique requirements. Applications: Aerospace, Civil Engineering, Environmental, Industrial Manufacturing, Oil and Gas, Rail, Robotics, Stabilization/Aiming, Unmanned, Vehicle Health |
 |
|||
 Wireless Systems |
 Displacement Sensors |
 Inertial Sensors |
|||
| As one of the first companies to utilize wireless sensor capabilities to allow digital sensors to interact with personal computers and the internet, LORD Microstrain® wireless sensor networks (WSN) enable simultaneous, high-speed sensing and data acquisition from multiple wireless strain gauges, accelerometers, temperature, and millivolt inputs for a variety of applications and industries. | Microstrain's line of displacement sensors (including non-contact, long-stroke, gauging/non-gauging, and micro-/subminiature) delivers a very high linear stroke range to body length ratio. They can beused in environments where tradition LVDTs are too large, and they are extremely robust - capable of operating at temperatures up to 175°C in corrosive media such as saline, oil and brake fluid. The near frictionless design enables sensors to operate over millions of cycles without wear or degradation in signal quality. | Microstrain's line of advanced inertial sensors provides a range of measurement options including orientation (pitch/roll/yew), inclination, linear acceleration, and angular rate. They offer a variety of options, including basic inclinometer, vertical gyro, VRU (vertical reference unit), IMU (inertial measurement unit), AHRS (attitude heading reference system), and GNSS/INS (GNSS-aided inertial navigation system) in industrial and tactical-grade performance options. | |||
 |

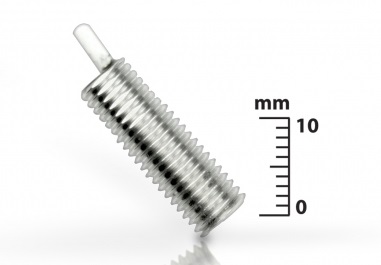

 Microminiature LVDT |
 Industrial Grade GNSS-Aided Navigation System |
|||
|
LORD MicroStrain® wireless sensor nodes offer a streamlined solution for remote and embedded monitoring that eliminates the need to install or maintain wires. Their wireless nodes support a wide range of sensor types and packaging options, allowing users to quickly configure their optimal network. Furthermore, low-power designs are coupled with internal batteries, and optional energy harvesters, for long-term application - TORQUE LORD MicroStrain® wireless sensor networks (WSN) enable simultaneous, high-speed sensing and data acquisition from multiple wireless strain gauges, accelerometers, temperature, and millivolt inputs. WSDA® wireless gateways coordinate and schedule communication between remote wireless sensor nodes and a variety of user-selectable end systems including third party controls, stand-alone dataloggers, local computers and networks, and SensorCloud™-enabled remote health monitoring and alerting systems. - USB  - SensorConnect™ |
LORD Sensing-MicroStrain® miniature LVDT deliver a very high linear stroke range to body length ratio, and can be used in environments where traditional LVDTs are too large. The miniature displacement transducers are extremely robust, capable of operating at temperatures up to 175°C in corrosive media such as saline, oil, and brake fluid. The near frictionless design enables sensors to operate over millions of cycles without wear or degradation in signal quality. - LVDT SENSORS  Non-Contact LVDT LVDT sensors from LORD Sensing-Stellar are used for many different types of applications-- from precision dimensional gauging to monitoring of fault-line movement. All our LVDTs are fully welded and constructed of stainless steel, and utilize free unguided, captive guided or captive guided spring return armatures to meet the needs of the application. They are available in with stroke ranges from ±0.01” to ±18.5” with accuracies of 0.25 to 0.5 percent FS. SIGNAL CONDITIONERS
AND DATA ACQUISITION Choose from the analog or wireless series of signal conditioners. Analog signal conditioners are available in high and standard-performance models. Wireless signal conditioners have standard performance, and are available with USB, RS232, Ethernet, and analog data outputs.  Signal Conditioner
|
The CV5 line of board-level OEM inertial sensors is ideal for platform stabilization, precision agriculture, terrain compensation, and more. Their small footprint and low weight enable them to install easily into almost any application. The CV5-25 AHRS, CV5-15 VR, and CV5-10 IMU sensors offer industrial-grade precision at a fraction of the cost. SIZE Smallest
and lightest industrial-grade sensors available DYNAMIC ACCURACY Best in class performance with adaptive modeling, bias tracking, and error estimation Sensor non-linearity down to 0.03 % of full-scale. Accelerometer resolution down to <0.04 mg and gyroscope resolution to < 0.008°/second. Low drift gyros with bias instability down to 5°/hr, noise density as good as 0.002°/sec/vHz, and vibration rectification error (VRE) as low as 0.001°/s/g2 RMS. CALIBRATION
Comprehensive, temperature compensated correlation to an orthogonal
coordinate system MIP DATA PROTOCOL
Flexible, fully supported protocol compatible across all inertial

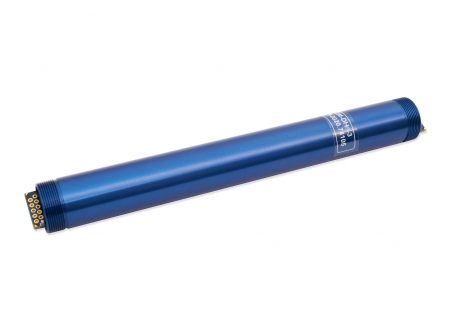

sensor families   Downhole orientation sensor and datalogger |
