FAB 2 Features:

Password protection

Add power indicator

Improve analog accuracy

Improve RTC accuracy

Improve PLC running speed

2 channels with 485 interface and 1 channel with the programing interface

Support ARRAY Text Panel(SH300)

Support the standard Modbus RTU protocol




Line Conditioning

Medical Grade UPSs

Function Block

RS-232/486 Extension Displays

SR PLCs

  FAB PLC

Array Products and Solutions

Array is one of the many rising stars in Asian Automation & Control and Instruments Products

They are impacting the world market with a great range of products.

Array has a clear vision of what it is marketing ;--- high quality, low prices and excellent functionality speced products

MasTec has been distributing Array since 2004.

Their PLC range is extensive and very useable. Low end are Programmabel Relays with Analog inputs on the DC models and the higher end have Modbus RS-485 with excellent speced analog also.

Not many companies can make a 6.5 digit DMM that is as good as the high end manufacturers, Array has.

Their programmableinstrument section grows each year.



Programmable Instruments



industrial Timers


Industrial Counters/Controllers

Please visit the Array site for full details.

Talk to a MasTec Instrumentation Engineer

Programmable Instruments

DMM 6.5 digit + Scanners TCs & RTDs - USB, GPIB
Arbitary Waveform Generator - 50MHz Sine, 25MHz Sq & 10MHz ARB - USB, LAN or GPIB
Universal Counter - 375MHz~6GHz , 1 mHz~400MHz Freq ranges - USB, Ethernet or GPIB
Power Supplies Single Output - USB, RS-232 + GPIB Option
Power Supply Triple Output - USB, RS-232 + GPIB Option
DC Loads - 0-360VDC 150 and 300 watts - RS-232, 485, USB
DC Load - 0-80VDC, 250 and 400 watts - RS-232, 485, USB - GPIB/SCPI

Programmable Logic Controllers

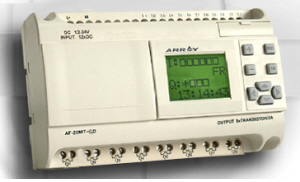

PLC - FAB Series - Simple PLC RS-232, 485, USB
PLC - SR Series - Smarter PLC - RS-232, 485, USB
PLC - APB Series - High Speed and high resolution Analog PLC - Modbus Comms
PLC - FAB 2Series -high resolution Analog PLC - Modbus Comms PDF


 Configurable Devices

LCD Display - Low Cost Smart - Modbus Serial Connection for most industry PLCs
Tachometer - Counter - Timer - Frequency - Industrial Grade

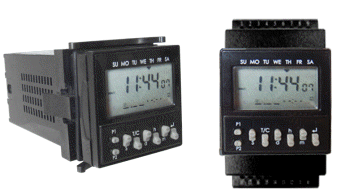

Digital Timer with Switches - Industrial Grade
PSU - DIN Rail with DC UPS function

Array Front Page on PLCs


SR PLC with Expansion IO Module


FAB 2 PLC with Modbus Registers

Medical Grage UPSs

Medical Grage UPSs


 SR PLC Model  Power  Inputs  Outputs  Clock
 SR-12MRAC  90-240VAC 3 W  8 AC Inputs  4 Relays  RTC
 SR-12MRDC  12-28VDC 3W  8 DC Inputs with 6 Analogs  4 Relays  RTC
 SR-12MTDC  12-28VDC 3W  8 DC Inputs with 6 Analogs  4 NPN Transistor  RTC
 SR-12MGDC  12-28VDC 3W  8 DC Inputs with 6 Analogs  4 PNP Transistor  RTC
 SR-22MRAC  90-240VAC 5 W  14 AC Inputs  8 Relays  RTC
 SR-22MRDC  12-28VDC 5W  14 DC Inputs with 8 Analogs  8 Relays  RTC
 SR-22MTDC  12-28VDC 5W  14 DC Inputs with 8 Analogs  8 NPN Transistor  RTC
 SR-22MGDC  12-28VDC 5W  14 DC Inputs with 8 Analogs  8 PNP Transistor  RTC
 SR-HMI    LCD Display + Keys
 SR-DCP  Direct Plug  Serial Interface + Cable
 SR-CP  Side Plug  Serial Interface + Cable

 Expansion Modules
 SR-20ERA  <1W  12 AC Inputs  8 Relays
 SR-20ERD  <1W  12 DC Inputs with 8 Analogs  8 Relays
 SR-22ETD   <1W  12 DC Inputs  8 NPN Transistor
 SR-22EGD  <1W  12 DC Inputs  8 PNP Transistor
 SR-VPA  90-250VAC  Telephone Voice, Auto Dial  + Remote control
 SR-VPD  12-26VDC  Telephone Voice, Auto Dial  + Remote control
 SR-RCA  90-250VAC  Remote receiving  Wireless
 SR-RCD  12-26VDC  Remote receiving  Wireless
 SR-TC  3VDC Battery  Remote Transmitter  Wireless

 Cabling etc
 SR-EHC    HMI Interconnect Cable
 SR-CBA  AC  AC PLC + AC Module Interconnect bridge
 SR-CBD  DC  AC PLC + AC Module Interconnect bridge
 SR-ECBA  AC  Remote AC PLC + AC Module Interconnect bridge
 SR-ECBD  DC  Remote DC PLC + DC Module Interconnect bridge
 SR-AUD    Microphone for VPA & VPD
 SR-USB    USB Interface to RS-232  +DUSB Cable


 APB PLC Model  Power  Inputs  Outputs  Clock
 APB-12MRD  12-28VDC 3.5W  8 DC Inputs, 8 Analog, 4 High Speed Ports  4 Relays  RTC
 APB-12MTD  12-28VDC 3.5W   8 DC Inputs, 8 Analog, 4 High Speed Ports  4 NPN Transistor  RTC
 APB-12MGD  12-28VDC 3.5W  8 DC Inputs, 8 Analog, 4 High Speed Ports  4 PNP Transistor  RTC
 APB-22MRA  90-240VAC 5 W  14 AC Inputs  8 Relays  RTC
 APB-22MRD  12-28VDC 3.5W  14 DC Digital, 12 Analog, 4 High Speed Ports  8 Relays  RTC
 APB-22MTD  12-28VDC 3.5W   14 DC Digital, 12 Analog, 4 High Speed Ports  8 NPN Transistor 2 as High Speed Ouputs  RTC
 APB-22MGD  12-28VDC 3.5W  8 DC Digital, 12 Analog, 4 High Speed Ports  8 PNP Transistor 2 as High Speed Ouputs  RTC
 APB-24MRDL  12-28VDC 3.5W  14 DC Digital, 12 0-10V Analog, 2 0-20mA inputs, 4 High Speed Ports  6 Relays, 2 0-20mA  RTC
 APB-22ERA  <1W  14 AC Inputs  8 Relays
 APB-22ERD  <1W  14 DC Inputs  8 Relays
 APB-22ETD   <1W  14 DC Inputs  8 NPN Transistor
 APB-22EGD  <1W  14 DC Inputs  8 PNP Transistor
 APB-SMS  GSM  SMS IO Control & Alarming  + Short Msgs
 APB-EXPC  RS-485  Serial Interface + Cable  RS-485
 APB-EXPC  RS-485  Ethernet Interface  TCP
