Electrical Safety Analyzers are used for a staggering number of applications, so why be stuck with one model available. Our five base models allow you to pick what you need and save some money at the same time. Need communications? RS232 is now available on ALL models. Doing International testing? Our INTL versions work worldwide.

Safety Analyzer - Australian - 10 Lead w/ Sim

SA-2010S-AUS


Safety Analyzer - Australian - 10 Patient Leads

SA-2010-AUS


Safety Analyzer - Australian - 5 Patient Leads

SA-2005-AUS

The BC Biomedical Model SA-2010S Series is a microprocessor-based Electrical Safety Analyzer with a built in Patient Simulator. It allows for a multitude of tests to be performed on a device using the same unit and lead connections. It provides a full Electrical Safety Analyzer, ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms. There is patient lead testing for 10 inputs.

SA-2010S Series Basic Features:

• Led status indicators
• Audio feedback
• Touch control keys – no knobs
• 10 universal patient lead inputs
• High impact plastic case

Safety Analyzer Capabilities:

• Line voltage measurement
• Device under test current measurement
• Earth / ground lead resistance
• Earth / ground leakage current
• Enclosure / chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 amp rating
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth / ground leakage current
• Patient isolation leakage current
• External isolation leakage current

Patient Simulator Capabilities:
• Sine: 10, 60 AND 100 HZ
• ECG: 30, 60, 120 AND 240 BPM
• Square: 0.125 AND 2.0 HZ
• Triangle: 2 HZ
• High level output (1 V p-p)
• Amplitude accuracy: +/- 2%
• Frequency accuracy: +/- 0.5%

SA-2010S-R:

• RS-232 Serial Communications

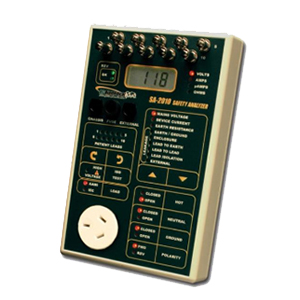

The BC Biomedical Model SA-2000 Series is a microprocessor-based Electrical Safety Analyzer family. All three models provide the same basic functions. The SA-2005 adds patient lead testing for five inputs. The SA-2010 adds Patient Lead testing for 10 inputs. The following are highlights of some of the main features:

SA-2010:
• Line voltage measurement
• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Enclosure/chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 Amp rating
• Touch control keys – no knobs
• Led status indicators
• Audio feedback
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth/ground leakage current
• Patient isolation leakage current
• External isolation leakage current
• 10 universal patient lead inputs

SA-2010-R:
• RS-232 Serial Communications

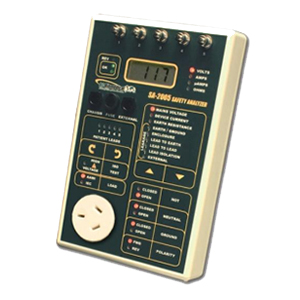

The BC Biomedical model The SA-2005 is a microprocessor-based Electrical Safety Analyzer family. All three models provide the same basic functions. The SA-2005 adds patient lead testing for five inputs.

SA-2005 Features:
• Line voltage measurement
• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Enclosure/chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 Amp rating
• Touch control keys – no knobs
• Led status indicators
• Audio feedback
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth/ground leakage current
• Patient isolation leakage current
• External isolation leakage current
• 5 universal patient lead inputs

SA-2005-R:
• RS-232 Serial Communications


Safety Analyzer - Australian - Base Model

SA-2001-AUS


Safety Analyzer - Australian - Lite Model

SA-2000-AUS


Safety Analyzer - Full PC Automation Version

SA-2500

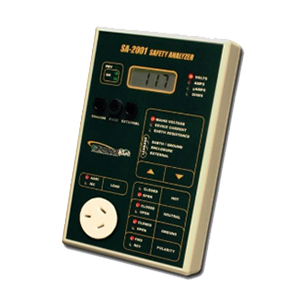

 The BC Biomedical model SA-2001 is a microprocessor-based Electrical Safety Analyzer. All three models provide the same basic functions.

SA-2001 Features:
• Line voltage measurement
• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Enclosure/chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 Amp rating
• Touch control keys – no knobs
• Led status indicators
• Audio feedback
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay


SA-2001-R:
• RS-232 Serial Communications

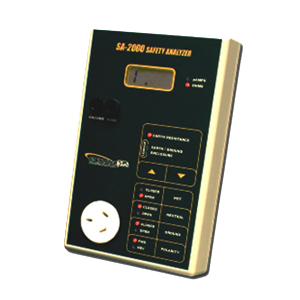

 The BC Biomedical model SA-2000 is a microprocessor-based Electrical Safety Analyzer.


SA-2000 Features:

• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Chassis leakage current
• True RMS measurements
• 85 to 265 VAC operation
• Full 20 amp rating
• Touch control keys – no knobs
• LED status indicators
• Audio feedback
• Externally replaceable ground fuse
• Automatic load reversal delay


SA-2000-R:
• RS-232 Serial Communications



 The SA-2500 is a Microprocessor based Electrical Safety Analyzer.

There are 2 Modes of operation, Manual and Remote. The Manual mode allows most basic testing functions to be stepped through one at a time. With the Remote mode, measurements are controlled via a PC. The user has the possibility to integrate all measurements into the individual operator interface at the PC and to define test sequences.


Standard Accessories (included with Unit) :

International Adapter Plug-BC20-20400 (If International Power Cord is Selected)
Power Cord Included
Kelvin Coiled Chassis Cable, BC20-20150 Plug-on alligator clip, BC20-20152
CD-ROM with remote control software
USB Cable, BC20-41352

Large Soft Sided Case Carrying, BC20-30108

NIST Certificate and Operator Manual




Safety Analyzer Add-On - 1 Amp Current Source

CS-2000


 Accessories available

Cables

Leads

Fuse

Case

Power Cords

Adapters

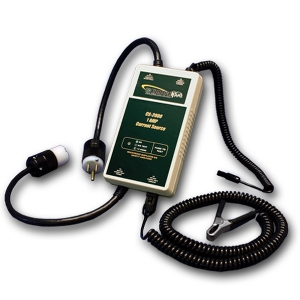

 The model CS-2000 is a one amp current source for testing the ground continuity in equipment. This device facilitates testing to IEC601 requirements, where a one amp source current is required. This device interfaces directly with BC Biomedical SA series of Safety Analyzers as well as the Dale 544D, 544D LITE and 601/601E Safety Analyzers.


CS-2000 Highlights:
• Facilitates testing to iec601 requirements
• Interfaces directly to BC Biomedical SA-2000 Series of safety analyzers
• Interfaces to Dale 544D, 544D LITE, 601 and 601E safety Analyzers
• Universal power supply (85 – 265 VAC, 50/60HZ)
• 1 amp current source for resistance measurements
• No protruding push buttons
• Light touch key used to operate
• Small, compact size
• CS-2000U for USA market
• CS-2000E for Europe (schuko) market
