IMT-BT medical tablets are designed to allow healthcare professionals to easily access electronic health records (EHRs) in order to check patient history, diagnosis, treatment and medications. Adlink's latest medical tablet is equipped with the Intel Celeron Processor N2807 and features a rugged design with IP65 ingress rating to withstand repeated sanitization and provide better infection control.

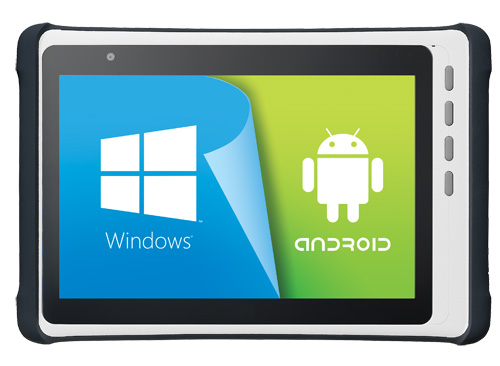

IMT-BT
10.1" Medical Tablet with Dual-core Intel®
Celeron® Processor N2807


Advanced HF RFID technology with data security
The IMT-BT is equipped with an NFC reader/writer and supports recognition of RFID tags (13.56 MHz). A SAM (Secure Access Module) is standard, enabling communication of encrypted data for applications requiring higher levels of security.

Perfect for any workplace
IMT-BT supports 802.11 a/b/g/n/ac for maximum wireless speed. The data-only modem accommodates optional high-speed 3.5G HSPA+ or 4G LTE cellular connections. In office or outside, WLAN and WWAN connectivity support speedy reception and processing, and sunlight readability allows easy viewing in the field.


• Dual-core Intel® Celeron® Processor N2807 SoC @ 1.58GHz
• Operating Systems: Windows 10 IoT; Windows Embedded 8.1; Android 4.4.2
• 10.1" sunlight readable display, capacitive touchscreen
• Wireless Connectivity:WLAN: IEEE 802.11 a/b/g/n/ac;WPAN: Bluetooth 4.0;WWAN (optional): 3.5G HSPA+, 4G LTE
• E-compass, G-sensor
  Consumer-style design with enhanced safety for healthcare environments
IMT-BTs are EN-60601-1 certified and rated IP65 for resistance to contaminants.The IMT-BT holds its own next to consumer tablets, with a 10.1" capacitive touchscreen and built-in megapixel cameras on the front and rear. Ruggedized with an IP65 rating, the IMT-BT easily withstands drops from 1.5m (with optional protective housing). The display is protected by ultra-strong Gorilla Glass, making it virtually impervious to damage, able to flex when dropped without shattering or scratching.




  AAEON’s Rugged Tablet Computers are multifunctional, military grade tablet computers that provide protection and ultimate resiliency for industrial heavyweight machinery and equipment, and are designed to perform at maximum capacity under rugged conditions, whilst also lowering back-end customization costs and ensuring seamless integration with existing systems.   Measuring from 5.7” to 10.2”, the rugged tablet computers offers a variable level of performance that are ideal for both indoor and outdoor use. Features such as IP-rated, MIL-STD-810-tested enclosures, sunlight readable screens with scratch-proof glass, and sturdily built hardware are just of some of the highlights that makes AAEON's rugged tablet computers stand out from other contemporaries.

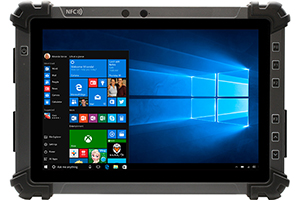

RTC-1010
10.1” Rugged Tablet Features with Intel® N3350/N4200 Processor with Windows®

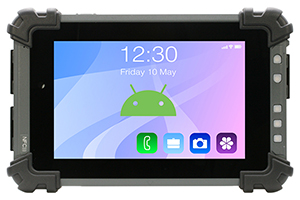

RTC-710RK
7” Rugged Tablet ARM-based Android™ with 1.6 GHz Quad Core Processora

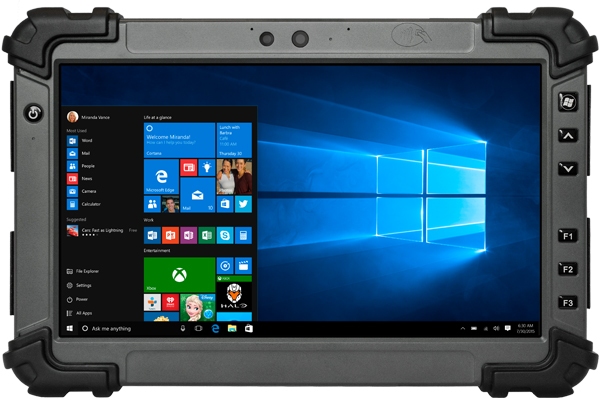

RTC-1200
11.6" Rugged Tablet Features Intel Kaby Lake Up To 3.9 GHz Dual Core Processor with Windows® 10
• 10.1" WXGA (1280 x 800) 800-nit / 300-nit TFT LCD
• Intel® Celeron™ N3350 1.1 GHz Dual Core Up to 2.4 GHz (N4200 Optional)
• Onboard DDR3L Memory, 4GB (Default)
• eMMC 64GB (mSATA III Up to 512GB Optional)
• Projected Capacitive Multi-Touch Screen
• WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
• 2MP Front and 8MP Rear Camera
• RS-232/422/485 COM Port + 10/100/1000 Base-T RJ45
• USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2
• 2D Barcode Scanner & Smart Card Reader (Optional)
• HF RFID Reader (Optional)
• Up to 3 GNSS, GPS+Galileo(Default), GLONASS or BeiDou(Optional)
• One Hot-swappable Battery + Internal Battery, Up to 44W Battery Capacity
• MIL-STD-810G, IP65 Compliant, Drop 122cm
• Programmable Function Key: F0, F1, F2, F3, Volume Up/Down, With LED Illumination
• Windows® 10 IOT
  • 7" WXGA (1280 x 800) 700-nit / 300-nit TFT LCD
• Rockchip RK3399 Processor
• Onboard LPDDR4 Memory, 2GB (Default) / 4GB
eMMC 16GB (Default) / 32GB
• Projected Capacitive Multi-Touch Screen
• WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
• 8MP Front and 8MP Rear Camera
• UART Port + 10/100/1000 Base-T RJ45 via I/O Module (Optional)
• USB 3.2 Gen 1 Type-C x 1, USB 2.0 Type-A x 1
• 2D Barcode Scanner via I/O Module (Optional)
• NFC (HF RFID) Reader (Optional)
• Up to 3 GNSS, GPS + Galileo (Default), GLONASS, • BeiDou (Optional)
• One Hot-swappable Battery + Internal Battery, Up to 44W Battery Capacity
• MIL-STD-810G, IP65 Compliant, Drop 122cm
• Programmable Function Key: F1, F2, F3, Volume Up/Down, With LED Illumination
• Android 8.1
  • 11.6” FHD (1920 x 1080) 300-nit / 850-nit / 1000-nit TFT LCD (Optional)
• Intel® Core™ i 7100U / 7300U / Celeron® 3965U Up to 3.9GHz
• One DDR3L SODIMM Socket, Up to 8GB, DDR4 SODIMM Socket (Optional)
One M.2 Slot for SSD, 64GB (Default), Up to 1TB (Optional)
• WiFi 802.11b/g/n, Bluetooth 4.1, LTE (Optional)
• 2MP Front and 5MP Rear Camera
• RS-232/422/485 COM Port + 10/100/1000 Base-T RJ45
• USB 3.2 Gen 1 x 1, USB 3.2 Gen 1 (Type C) x 1 (Optional), USB 2.0 x 2
• 2D Barcode Scanner/ HF RFID Reader (Optional)
• Hot-swappable Battery, 14.4V/ 2270mAh, 32.7W x 2
• MIL-STD-810G, IP65 Compliant, Drop 122cm
• Programmable Function Key: Windows, Volume Up/Down, F1, F2, F3, With LED Illumination
• Docking Connector with GNSS / WWAN Antenna Pass-through Connector
• Windows® 10 IOT (Windows® 7 for Skylake, Optional)



  Advantech Medical tablets are equipped with LiFePO4 battery to support mobile computing in Mobile Clinical Assistant (MCA). Our Medical Tablets, with integrated technology supporting healthcare workflows, enable hospitals to streamline medication administration and documentation.

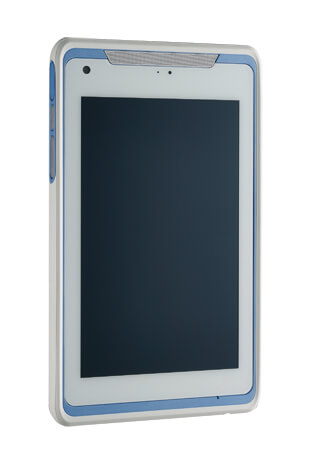

AIM-55
8" Medical Grade Tablet

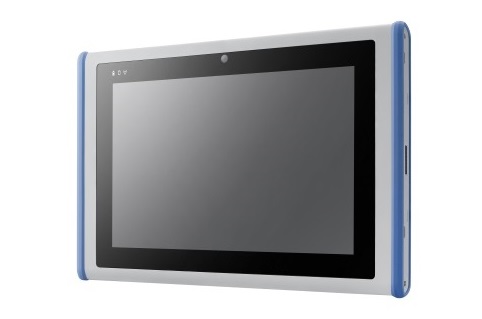

MIT-W101
10" Medical Tablet PC with Intel® Celeron® Processor



MICA-053
5” MICA-053 Tablet for Diverse Healthcare Applications

Advantech's AIM-55 is a medical-grade tablet that features a stylish appearance and advanced computing technologies to provide a superior device for mobile computing in healthcare environments. Designed to streamline hospital workflows and improve patient care, AIM-55 functionalities can be easily expanded with the addition of diverse extension modules, such as a barcode scanner, magnetic stripe reader, smart card reader, and RJ45 connector, according to specific application requirements.

• Certificated with latest medical standard : IEC60601-1
• AIM Dock 16-pin Pogo connector support Cradle & Docking peripherals : VESA Dock & stand, Multi tablet & battery charging station.
• AIM Extension 14-pin Pogo connector support Extension Modules for 1D/2D Barcode scanner with 20 & 70 degree design, LAN COM, MSR.
• Device support Windows 10 IoT Enterprise & Android 6.0 dual OS
• Camera module supports up to 13MP auto focus with LED flash.
• Comprehensive communication technologies including 3G/4G, WLAN, BT, NFC, GPS and HDMI output.
• IP65 water and dust protection/ 4ft drop compliant.
• Supports glove mode and stylus with palm detection to expand usability.
• Equipped Gorilla® Glass 3, Anti-Glare, Anti-Fingerprint, Direct Bonded Touch Panel against scratch.
• Medical-Grade 8" 1920 x 1200 IPS Panel with 400 nits brightness and MTBF up to 12,000 hours.
• Built in Intel® Atom™ processor with dual OS platform. (Windows / Android)



Advantech’s MIT-W101, 10" medical tablet PC, is medical-grade certified, Windows-based and designerd for healthcare environment. With IEC/ EN 60601-1 certification, the medical tablet can be used in the most critical environment like operating rooms, intensive care unit and emergency room. Infection control is also one of the important elements for hospital and other healthcare facilities. To address this issue, the medical tablet PC is also certified with an IP-65 rating for entire unit for ease of cleaning and the housing with antimicrobial coating can reduce the risk of the spread of contagious diseases. The unit is also with MIL-STD 810G certification for 120 cm drop protection to ensure reliable operation.

• Intel® Celeron® N2930 Quad Core processor
• Support Windows 8 Operating System
• 10.1" WXGA, Projective Capacitive Multi Touch Display
• 0° C to 35° C (32° F to 95° F), IP65, MIL-STD 810G, 4ft drop compliant
• Compact/Slim design: 20mm/0.79inch height
• Seamless communications, Including Wi-Fi, BT, NFC (optional)
• Warm Swappable Battery
• Optional integrated 1D/2D barcode scanner and expansion module (MSR+SMC)
• Optional accessories include: 6ft drop rugged bumper, docking station, VESA dock, hand strap, and multi-function cover



MICA-053 is equipped with medical-grade features that offer substantial application value for nursing stations, pharmacies, laboratories, and medical equipment rooms. The high-performance ARM® Cortex™-A53 processor is compatible with both Android 5.1 and 7.0 IoT operating systems, enabling flexible configuration. For daily operations such as medical inventory management, medical consultations, patient identity verification, and drug administration, the built-in Wi-Fi, NFC, WLAN, and Bluetooth 4.0 communication technologies offer substantial connectivity and increased data streams. Meanwhile, the inclusion of a 13-megapixel camera and 1D/2D barcode scanner streamlines data acquisition by providing multiple data collection tools for flexible usage. Additionally, with its IP54-rating, the MICA-053 tablet can tolerate repeated sanitization to ensure superior hygiene for medical applications.

• Palm size and smooth curve fits in your hand
• 5" HD resolution LCD with P-cap Multi-Touch for better user experience
• Weight less
• Supports Android 5.1 IoT
• IP54 enclosure to protect from dust and water splashing for ease of cleaning
• Disinfectant Plastic
• -20 ~ +60 °C wide-range temperature
• Drop-tested from 120cm to ensure reliable operation
• Embedded with Moto SE4710 Barcode Scanner, 13 MP camera with flash




  ARBOR medical solutions help healthcare organizations provide higher quality to care to staff and patients. With customizable designs, ARBOR medical products help the IT staff provide solutions for every hospital environment such as ER, surgery, ICU, bedside terminals and infotainment.

M0830
8" Intel® Atom™ Z8350 Mobile Clinical Assistant



Gladius G0710 BTO
7" Intel® Atom™ Z510 Mobile Medical Data Terminal

• eHealthcare and clinical assistant application
• 8” TFT color LCD 1024 x 768 XGA resolution
• IPS LED display with projected capacitive multi-touch panel
• High mobility with connectivities including WLAN and Bluetooth
• Expansion for storage via microSD slot
• Identification devices (barcode scanner, RFID & NFC reader
• )IEC & EN 60601-1 Safety (Edition 3.1), IEC & EN 60601-1-2 EMC (Edition 4th) certificated
  • 7" Wide Active Matrix TFT Panel
• EN60601-1/EN60601-1-2/UL60601-1 Certified
• Ultra Light (1kg)
• Ultra Low Power Consumption
• Multi Connectivity (Bluetooth/WLAN/RFID/ 1 x GbE LAN)
• Ultra Reliability/IP54 Compliant Enclosure
• Instant Resume (Suspend to Disk/RAM)
• Passive Cooling System (Fanless)
• Ultra Long Battery Life (4 hours)




   Winmate Inc. began manufacturing industrial displays and touch screens, and later expanded to digital signage, embedded panel PC, rugged tablets, and handheld devices for industries ranging from transportation and logistics, to marine and military, railway, oil and gas, medical, smart grid, healthcare, and field service.

10.1" Rugged Medical Tablet PC - M101P-ME


 13.3" Rugged Medical Tablet - M133W-ME




7" Rugged Medical Tablet - M700DM8-ME
Features
• 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
• Intel® Apollo Lake Pentium N4200 processor
• Housing enhanced with antimicrobial properties
• USB 3.0 (Type C) connector
• Optional 1D/2D barcode scanner to scan medications or wrist bands
• Lightweight, rugged, IP65 waterproof and dustproof
• IEC 60601-1, 60601-1-2 Medically certified
  Features
• Intel Core i5-5250U Broadwell Processor
• 13.3” 1920 x 1080 IPS LED Panel with direct optical bonding
• Magnesium alloy housing with all-around
elastomeric rubber
• Support 1D/2D Barcode and RFID Reader
• Built-in kickstand
• IP65 waterproof and dustproof
• Optional antimicrobial surface coating


Features

• Cortex-A53 Octa Core Processor
• 7” 1280 x 720 TFT Panel with direct optical bonding
• Supports Android 7.0 OS
• Hot-swappable battery design
• Default NFC Reader with optional 2D Barcode Reader
• IP65 waterproof and dustproof
• Antimicrobial surface coating



5" Medical PDA - E500RM8-ME




4.3" Rugged Medical PDA

Features
• Cortex A53- Octa Core 1.3 GHz
• 5” 1280 x720 Panel with direct optical bonding
• 1D/2D Barcode Reader and NFC reader for data collection
• IP65 waterproof and dustproof
• Optional antimicrobial surface coating
  Features
• Cortex-A53 Quad-Core Processor
• 4.3” 480 x 800 Panel
• Supports Android 7.0 OS
• IP65 waterproof and dustproof
• With Barcode and NFC Reader
• Optional antimicrobial surface coating
